Sometimes, we might wonder, “How does an aircraft manage to take off and stay controlled at such high speeds?” As an aircraft maintenance instructor, I understand the complex mechanics behind it.
Riding a motorcycle, we feel the heavy resistance of airflow, even at moderate speeds. Now, imagine an aircraft traveling at ten times that speed—how could a pilot even adjust a control surface against such intense air pressure? This is where the power of the aircraft hydraulic system comes in.
Aircraft hydraulic systems give pilots the strength and precision needed to maneuver, lift, and land safely, making them a critical part of aviation’s engineering marvels. Let’s learn about it!
what is aircraft hydraulic system
An aircraft hydraulic system is a network of components that uses hydraulic fluid to generate, transmit, and control power. In simpler terms, this system enables various mechanical components to move and operate efficiently, even under high loads and pressure. Hydraulic systems are essential for aircraft because they allow for precise control with minimal effort from the pilot, ensuring a responsive and safe flying experience.
In most modern aircraft, the hydraulic system is responsible for operating landing gear, flaps, brakes, thrust reversers, flight control surfaces, and even some secondary systems like cargo doors. Given that these functions are critical to safe flight, hydraulic systems are meticulously designed to be highly reliable, with redundancies and backups to prevent any single point of failure.
aircraft hydraulic system components
Understanding the key components of an aircraft hydraulic system is essential to grasp how it works. Here are some of the main parts:
- Hydraulic Fluid: The lifeblood of any hydraulic system, hydraulic fluid transmits force within the system. This fluid must be highly stable, resistant to temperature changes, and non-corrosive to ensure optimal performance.
- Hydraulic Pumps: These pumps are responsible for generating the hydraulic pressure needed to move components. They are often driven by the aircraft’s engines, but electric pumps or auxiliary power units (APUs) may also be used.
- Actuators: These are devices that convert hydraulic pressure into mechanical motion, allowing for the movement of various components such as landing gear or control surfaces.
- Reservoirs: The reservoir stores excess hydraulic fluid and helps maintain pressure within the system. It also allows for expansion and contraction of fluid due to temperature changes.
- Accumulator: An accumulator in an aircraft hydraulic system is a vital component designed to store hydraulic fluid under pressure and release it as needed, ensuring the system operates smoothly and efficiently. Essentially, it acts as a pressure reservoir that helps balance the demands of the hydraulic system.
- Valves: Hydraulic fluid flow is controlled by the valves. They direct fluid to the right components at the right times, ensuring that each part operates as needed.
- Filters: Filters remove contaminants from the hydraulic fluid, helping maintain the system’s longevity and reliability.
How Does an Aircraft Hydraulic System Work?
The operation of an aircraft hydraulic system relies on Pascal’s Law, which states that pressure applied to a confined fluid is transmitted equally in all directions. Here’s a simplified overview of how the system functions:
- Pressure Generation: When the pilot or automatic system activates a component, a signal is sent to the hydraulic pump to generate the required pressure. The hydraulic fluid, under pressure, is then directed to the relevant actuator.
- Transmission and Control: The fluid flows through a series of valves and lines to reach the actuator, which converts the hydraulic pressure into mechanical movement. For example, to lower the landing gear, fluid is directed to the actuators responsible for moving the gear into position.
- Returning Fluid: Once the task is completed, the hydraulic fluid flows back to the reservoir, where it can be used again as needed. This cycle ensures that hydraulic power is always available to critical systems without waste.
Types of Hydraulic Systems in Aircraft
Aircraft hydraulic systems can be classified into different types based on the aircraft’s design and requirements:
- Open-Center System: In this system, hydraulic fluid flows freely when no components are in use. This type of system is common in smaller, lighter aircraft where hydraulic demands are lower.
- Closed-Center System: In a closed-center system, fluid only flows when a component is actively engaged. This setup is more common in larger commercial and military aircraft, where hydraulic power demands are high.
- Power-by-Wire (PBW) Systems: In advanced aircraft, power-by-wire systems have started to replace traditional hydraulics. PBW systems use electrical signals to control components, reducing the amount of hydraulic fluid needed and enhancing safety.
Advantages of Aircraft Hydraulic Systems
Aircraft hydraulic systems are favored in aviation for several reasons:
- High Power Efficiency: Hydraulic systems provide more power per weight than mechanical or electrical systems, making them ideal for aircraft where weight is a critical factor.
- Precision and Control: Hydraulic systems allow for precise control over high-force applications, like moving landing gear or adjusting flight control surfaces.
- Reliability: With redundant systems and backup options, aircraft hydraulic systems are incredibly reliable, providing safety-critical operations even in challenging conditions.
- Ease of Maintenance: Although they are complex, hydraulic systems are designed for relatively straightforward maintenance and servicing, ensuring that aircraft can be kept in top shape.
How many hydraulic system in aircraft
The number of hydraulic systems on an aircraft depends on the aircraft’s size, type, and complexity. Generally, commercial and larger aircraft have multiple hydraulic systems to ensure redundancy and reliability. Here’s an overview:
- Smaller Aircraft: Many smaller, general aviation aircraft may have just one hydraulic system to manage essential functions, such as brakes and landing gear.
- Commercial Aircraft: Large commercial aircraft, like the Boeing 737 or Airbus A320, typically have two or three independent hydraulic systems (often labeled A, B, and sometimes C). These systems ensure that if one fails, others can take over to maintain essential functions.
- Wide-Body Aircraft: Larger and more complex aircraft, like the Boeing 747, B777, B787 or Airbus A380, often have three or even four hydraulic systems. These systems are typically designed with extensive redundancy to handle critical flight controls, landing gear, braking, and other essential functions.
Each system is usually powered by separate pumps—engine-driven, electric, or air-driven—to maintain independence and reliability. This redundancy allows critical functions to continue operating even in the event of a hydraulic system failure, ensuring passenger and flight safety.
Aircraft hydraulic system failure causes
While aircraft hydraulic systems are built for reliability, failures can still occur due to several factors:
- Fluid Contamination: Dirt, metal particles, or water in hydraulic fluid can clog filters and wear down components.
- Seal Deterioration: Over time, seals and O-rings wear out, causing leaks and pressure loss.
- Overheating: Excessive heat degrades hydraulic fluid and damages components, leading to efficiency loss.
- Mechanical Damage: High-stress components like pumps, actuators, and hoses are vulnerable to wear and external impacts.
- Pump or Valve Malfunctions: Worn pumps and clogged or stuck valves can disrupt fluid flow and reduce system effectiveness.
- Improper Fluid Use: Incompatible or mixed hydraulic fluids damage seals and reduce lubrication.
- Electrical Faults: In modern systems, faulty wiring or sensor malfunctions can lead to inaccurate pressure readings and poor valve control.
- Human Error: Mistakes during maintenance or operation, such as using the wrong fluid or missing leaks, can impact system reliability.
By regularly inspecting, maintaining, and using the correct fluids, these risks can be minimized, ensuring the hydraulic system’s continued safety and effectiveness.

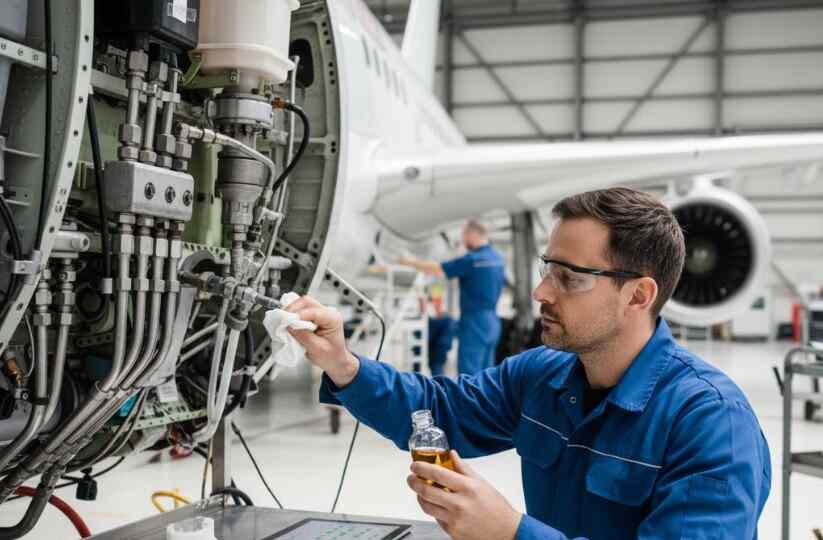

aircraft hydraulic system maintenance
Aircraft hydraulic systems undergo rigorous maintenance and inspections to ensure they are always functioning properly. Regular checks involve inspecting fluid levels, replacing filters, and verifying that actuators and pumps are operating efficiently.
Hydraulic fluid must be carefully monitored and replaced as needed to avoid contamination, which can lead to malfunctions or failure.
what is the purpose of an accumulator in an aircraft hydraulic system
Accumulator is one of the important component in the aircraft hydraulic system for its own safety and efficiency. Followings are some of the benefits of using an accumulator:
- Pressure Stabilization: Smooths out pressure fluctuations, maintaining consistent hydraulic pressure.
- Energy Storage: Stores hydraulic energy for high-demand actions like retracting landing gear.
- Compensation for Fluid Loss: Temporarily compensates for fluid loss due to leaks or sudden drops in pressure.
- Reduces Pump Cycling: Minimizes the need for the hydraulic pump to cycle on and off, improving system efficiency and longevity.
Conclusion
An aircraft hydraulic system is an indispensable component that ensures the safe and efficient operation of various critical functions on an aircraft. From generating powerful force to controlling essential movements like landing gear and flight surfaces, this system’s importance cannot be overstated.
With advancements in technology, hydraulic systems are becoming even more efficient and reliable, continuously supporting the aviation industry’s growth. Understanding the aircraft hydraulic system is not only essential for those in the aviation field but also helps enhance the overall appreciation of modern engineering marvels in flight.
